FORKLIFT - SECURITY - MILITARY - LAW ENFORCEMENT
CONSTRUCTION - UTILITY - FUNERAL - ESCORT - MARINE APPLICATIONS
|
|
|
|
B1LFPS 12VDC 110VAC 220VAC FLASHING WITH PHOTOSWITCH
FLASHING LED SMALL PHOTOCELL BEACON LIGHT
AMBER - BLUE - CLEAR - GREEN - RED - VIOLET PURPLE
360 Degree LED Beacon Light
6 Super Bright LED's
Polycarbonate Lens and Nylon Base
Long lasting warning light
60 to 80 Flashes Rate per Minute.

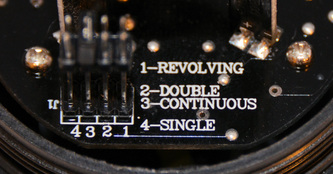

4 Flash Patterns available by selectable jumper:
- Simulated Revolving
- Single Flash
- Double Flash
- Continuous Flash
Height 5.38"
Lens diameter 2.40"
Base dimensions 3.94" x 2.80"
Screw down lens sealed with silicone gasket
Mounting hardware and foam gasket are included
Average Current Draw:
@ 12VDC 300 mA +/- 5mA
@ 110VAC 100 mA +/- 5mA
@ 220VAC 50 mA +/- 5mA
Small in size but big on power, the B1LFPS LED Beacon provides a full 360 degrees of visibility with 18 or 30 integrated LED’s and a Fresnel lens. Designed to be permanently mounted, this unit includes the necessary mounting hardware to help make installation simple and fast. Provides a full 360 degrees of signal visibility and is designed to provide an effective light solution for applications requiring a small but powerful signal light. Incorporating high powers LED’s into and Fresnel lens, the light is effectively distributed over the entire diameter of the unit, producing a light effect that is both powerful and efficiently radiated. The waterproof lamp housing on this unit is constructed of polycarbonate and nylon and the internal electronics are fully protected for superior moisture and vibration resistance. The lens is impact and shock resistant, resulting in a unit that is highly durable and able to withstand the rigors of commercial and industrial applications. This LED light is easily visible at extended distances and provides an effective signal for applications including security, military, utility or marine operations. This units can operate on 12V DC or 110V 220V AC.
This Light Switch enables you to turn on or off the light in day and night without manual operation, novel design, reliable and long service life.
Widely used: street light, highway, factories, garden, ports, airports, farm, parks, schools, and other places.
Also can fit into solar lamps and lanterns, or cars, motorcycles, electric cars and other power supply voltage is DC12V lamps and lanterns or equipment.
It can install on the wood, metal and concrete pole.
Automatic switch wire connection: white line and black line connect power, white line and red line connect load.
Sensitivity: Not Adjustable
Input Voltage: DC 12V or AC 110V 220V
Max Load Current: 10A
Output: Relay
Delay Time: < 3 minutes
Dimensions: 2.25 x 1.65 x 1.38 inches (except bracket)
Weight: 2 ounces
Notes: Do not install the control unit in a place extremely dark in the daytime or directly in the light of turning-ON lamp
